Air-cooled Chillers

Efficiency through advanced heat exchangers and smart controls.

• 150–500 tons
• Lower energy costs as much as 50%
• Tailor options to meet specific requirements

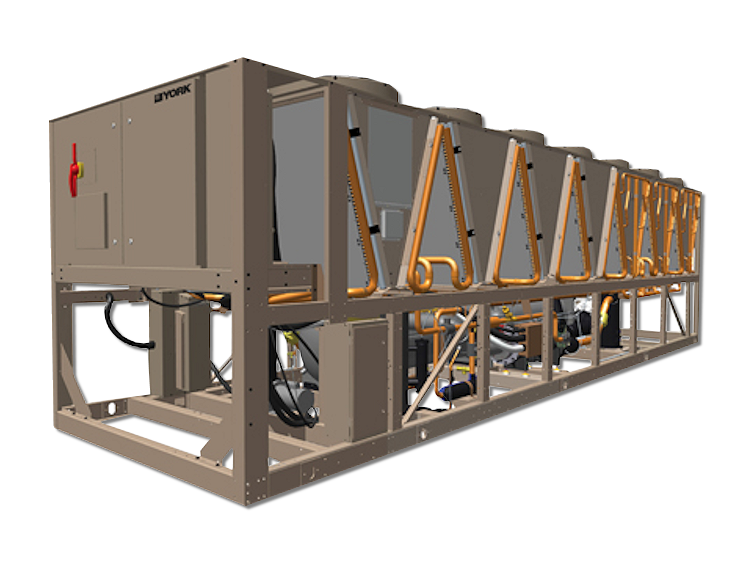

A packaged design that's simple to operate and minimizes costs.

• 115–500 tons
• Air-to-liquid free cooling coils
• Intelligent controls to optimize energy

A flexible chiller providing the right balance for improved performance.

• 40–230 tons
• Flexible design is perfect for retrofits or new construction
• Quick ship program available

Full DC inverter Air-cooled mini-Chiller (VTF outdoor unit)

• wider capacity ranges from 4HP to 14HP for the basis models
• Full year cooling operation -5℃~48℃ and -27℃(4~6.5HP, -20℃)~43℃ heating operation
• smoother air flow temperature and better humidity balance

Full DC inverter Air-cooled mini-Chiller (VTF outdoor unit) with Heat Recovery for Domestic Hot Water

• wider capacity ranges from 4HP to 12HP for the basis models, and flexible to be extended to 48HP
• Full year cooling operation -5℃~48℃ and -20℃~43℃
• Cooling Capacity: 11.2/14/15.5/20/22/25/28/31kW; Heating Capacity: 12.6/16.1/18/22/24/27/30/33kW



Air-cooled Modular Chiller, Cooling Capacity: 65/100/130kW; Heating Capacity: 66/101.5/131.9kW

• Flexible system combination from 1 to 32 units
• COP3.18~3.42, IPLV(C)4.30~4.34; Variable capacity adjustment by refrigerant cycles on/off or combination modules on/off
• Reliable operation from  -15℃ to 48℃; multiple backup and rotation operations

Air-cooled modular chiller with heat recovery for sanitary hot water

• COP5.28(065)/7.66(130) under the simultaneous air-conditioning cooling and heat recovery for sanitary hot water
• COP3.18~3.42, IPLV(C)4.30~4.34; Variable capacity adjustment by refrigerant cycles on/off or combination modules on/off
• Stable sanitary hot water producing operation from -15℃ to 48℃

DC inverter Air-cooled modular chiller (Cooling Only)

• Flexible to combine and integrate YCAE-X, YCAE-XHR and/or YCAE-XHR as one chiller system intelligently
• Reliable full year cooling operation from  -17.8℃ to 48℃
• Cooling Capacity: 45/60/78/99/122/159/188/222/255kW



Full DC inverter Air-cooled Modular Chiller (Commercial VTF outdoor unit), Basis Model Cooling Capacity: 45/65kW; Heating Capacity: 46/66kW;

• wider system capacity ranges from 45kW to 2080kW by modular combination from 1 to 32 modules in one chiller system
• Full year cooling operation -15℃~48℃ (45kW model -5℃~48℃) and -25℃~43℃ heating operation
• smoother air flow temperature and better humidity balance

Full DC inverter Air-cooled Modular Chiller (Commercial VTF outdoor unit), Basis Model Cooling Capacity: 45/65kW; Heating Capacity: 46/66kW;

• wider system capacity ranges from 45kW to 2080kW by modular combination from 1 to 32 modules in one chiller system
• Full year cooling operation -15℃~48℃ (45kW model -5℃~48℃) and -25℃~43℃ heating operation
• smoother air flow temperature and better humidity balance
